- Measures drug resistance related to activity of all three major ABC transporter proteins.
- Single proprietary dye provides quantitative measurements of MDR activity in live cells expressed as MDR Activity Factor (MAF).
- Kit includes three known inhibitors specific for MDR1 (p-glycoprotein), MRP1/2, and BCRP.
- Simple, no-wash protocol delivers results in 1 hour.
- Available in green and gold fluorophores.
- Comprehensive efflux detection assay for three major types of ABC transporters.
- Detects BCRP activity not detected with Calcein AM.
- Inhibitors included for profiling of specific pumps involved in drug resistance.
- Two dye formats allows multiplexing with GFP-expressing cell lines or other CELLESTIAL® dyes.
The EFLUXX-ID® Multidrug Resistance Assay Kit allows for functional detection of all three clinically relevant ABC transporter proteins: MDR1 (p-glycoprotein), MRP1/2, and BCRP. The assay uses a hydrophobic, non-fluorescent compound that readily penetrates the cell membrane, where it is hydrolyzed to a hydrophilic fluorescent dye by intracellular esterases. Unless the EFLUXX-ID® dye is pumped out of the cell, the esterase cleaved dye is trapped inside the cell. Thus, cells exhibiting drug resistance will have diminished fluorescence. EFLUXX-ID® assay is the only available kit for the simultaneous monitoring of all three major ABC reporter proteins with the ability to profile individual pump activity.

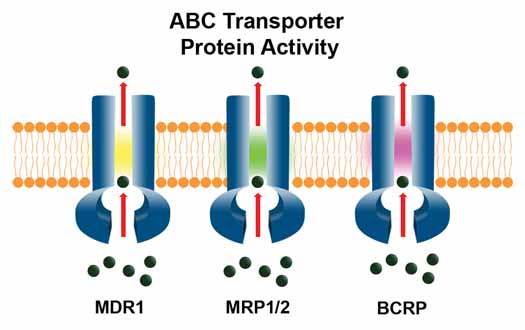

Mechanism of Action
The proprietary AM-ester form of the EFLUXX-ID® dye is a hydrophobic non-fluorescent compound that readily penetrates the cell membrane and is subsequently hydrolyzed inside of the cells by intracellular esterases. Unless the EFLUXX-ID® dye is pumped out of the cell, the esterase cleaved dye is trapped inside the cell. The fluorescence signal of the dye generated within the cells thus depends upon the activity of the ABC transporters. The cells with highly active transporters will demonstrate lower fluorescence because of the active efflux of the probe from the cell. Application of specific inhibitors of the various ABC transporter proteins allows differentiation between the three common types of pumps.
Drug resistance is a phenomenon mediated by up-regulation of a family of transmembrane ATP Binding Cassette (ABC) transporter proteins. Overexpression of ABC transporter proteins accelerates removal of toxic agents from the cell, for example the efflux of chemotherapeutic agents from tumor cells, or of antibiotics from resistant strains of bacteria.
Shipping: Available products typically ship within 24/48h, via priority shipping.
Do you need support? Contact Customer Service or Technical Support.
Online Account
Access or Create Your Account

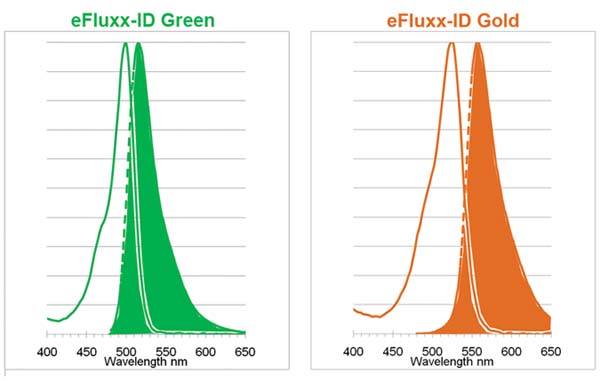

Figure 3: Spectral characteristics of the eFluxx-ID Green 490/514 nm ex/em and Gold 530/570 nm ex/em reagents allows for multiplexing with other common fluorescent dyes.

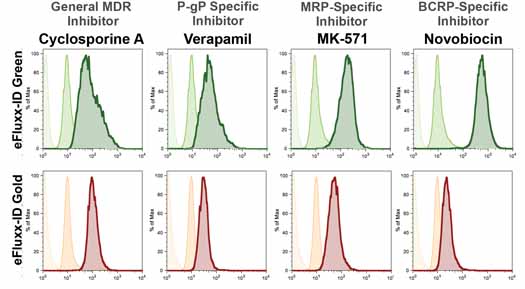

Figure 2: Profiling of ABC transporter activity by known inhibitors was assessed in CHO K1 cells using eFluxx-ID Green and eFluxx-ID Gold dyes. Cells were incubated for 5 min at 37°C with general MDR Inhibitor (far left column) or transporter-specific inhibitors included in the kit. Cells were then loaded with the indicated dye for 30 min at 37°C and immediately analyzed by flow cytometry. Inhibitors used: 5 µM Cyclosporin A (general MDR inhibitor), 20 µM Verapamil (specific P-gp inhibitor), 0.05 mM MK-571 (specific MRP inhibitor), 0.05 mM Novobiocin (specific BCRP inhibitor).

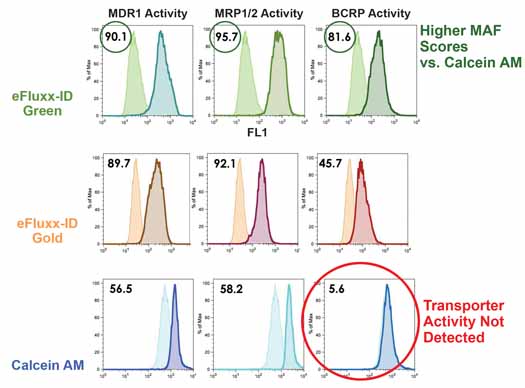

Figure 1: Detect Activity of all three major ABC transporter proteins. ABC transporter protein activity was evaluated in CHO K1 cells by flow cytometry using eFluxx-ID Green (top), Gold (middle), or Calcein AM (bottom) dyes. Treatment with specific inhibitors of ABC Transporter proteins (shaded histograms) induces retention of dye within cells relative to untreated cells (lined histograms). The difference in mean fluorescence intensity (MFI) is an indication of the corresponding protein activity, as shown by MAF scores [multidrug resistance activity factors], a quantitative measurement of multidrug resistance. Higher MAF scores are a result of superior specificity of eFluxx-ID dyes to specific inhibitors. Calcein AM (a common probe for MDR assays), is unable to detect BCRP activity.
EFLUXX-ID® Gold multidrug resistance assay kit image

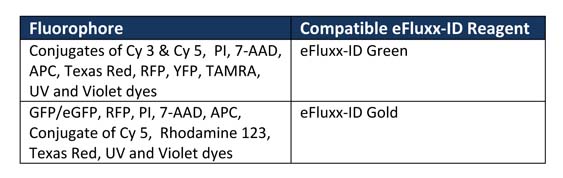

Table 1: Compatibility of eFluxx-ID MDR dyes with other fluorescent dyes.
| Regulatory Status |
RUO – Research Use Only |
|---|
Related Products
EFLUXX-ID® Green multidrug resistance assay kit
ENZ-51029
Simple No-wash Assay for Simultaneous Monitoring of All 3 Major ABC Transporter Proteins – MDR, BCRP & MRP
| Application | Flow Cytometry, Fluorescence microscopy |
|---|
